EDMO DM10
View Document
Description

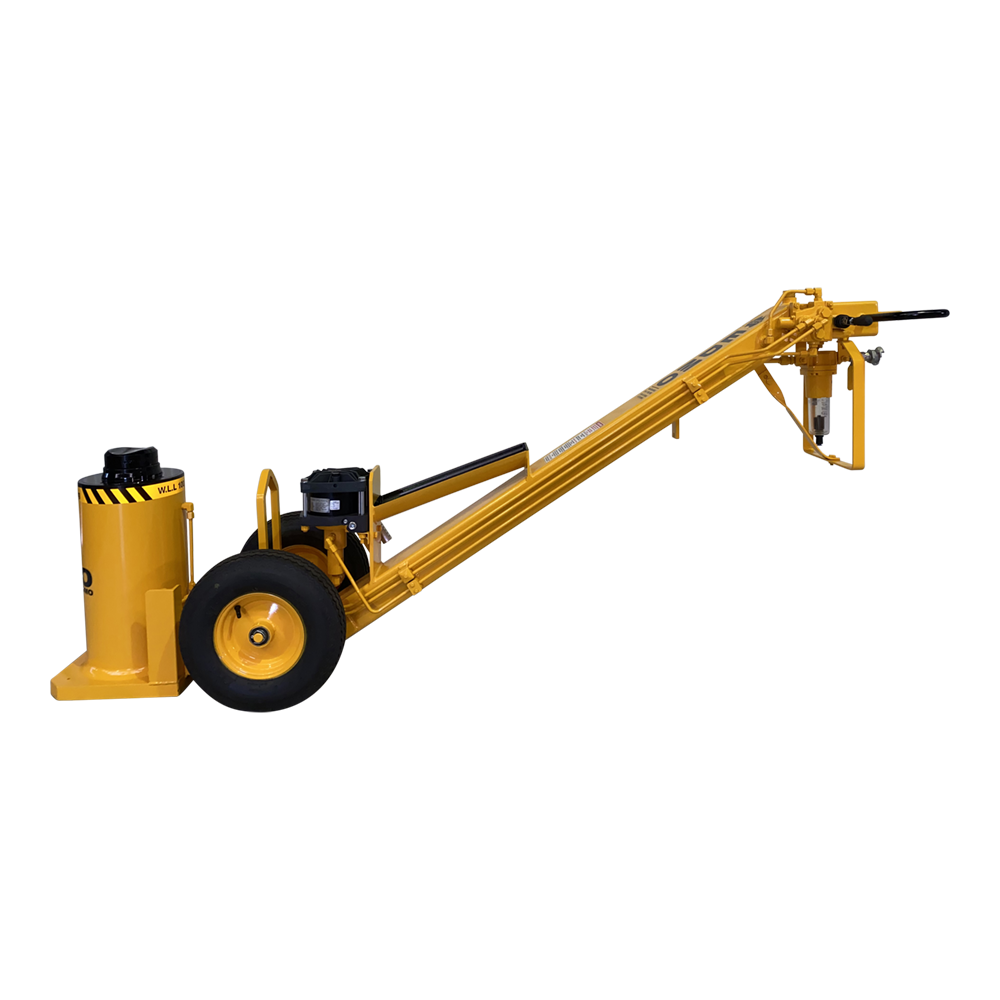

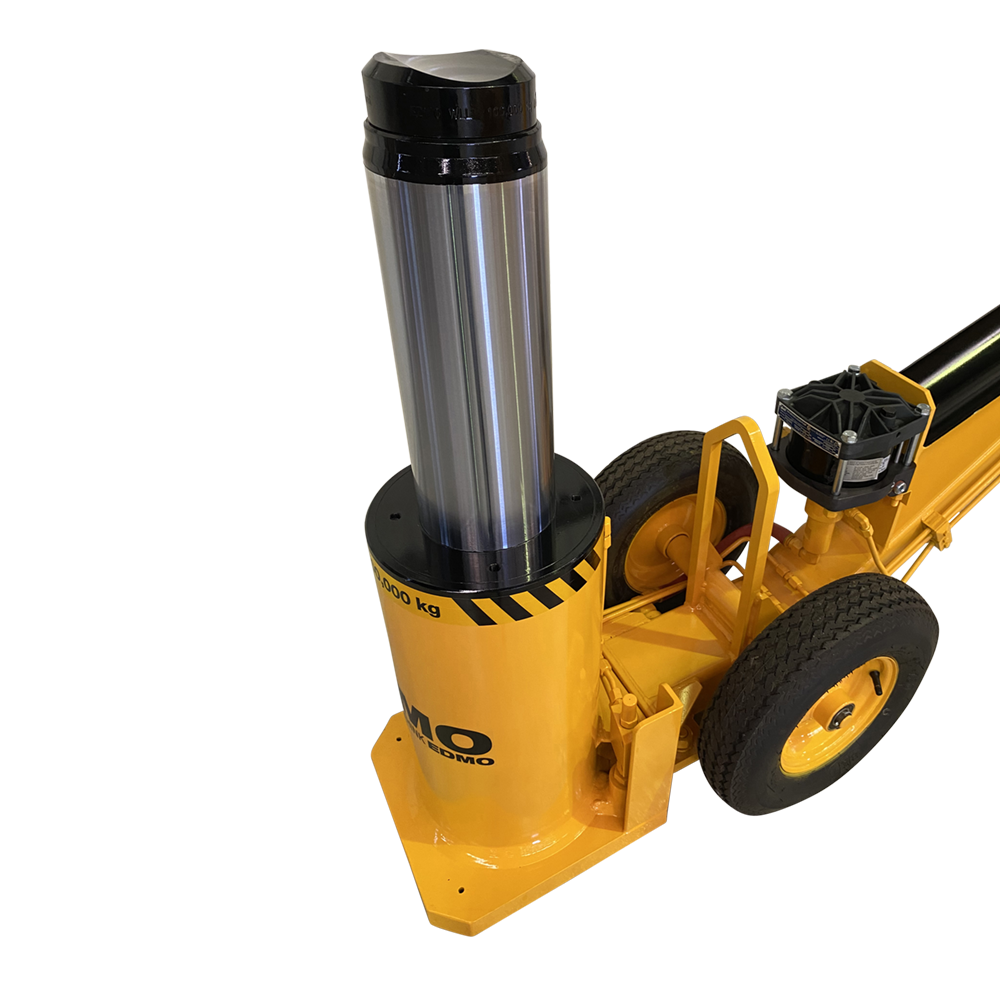

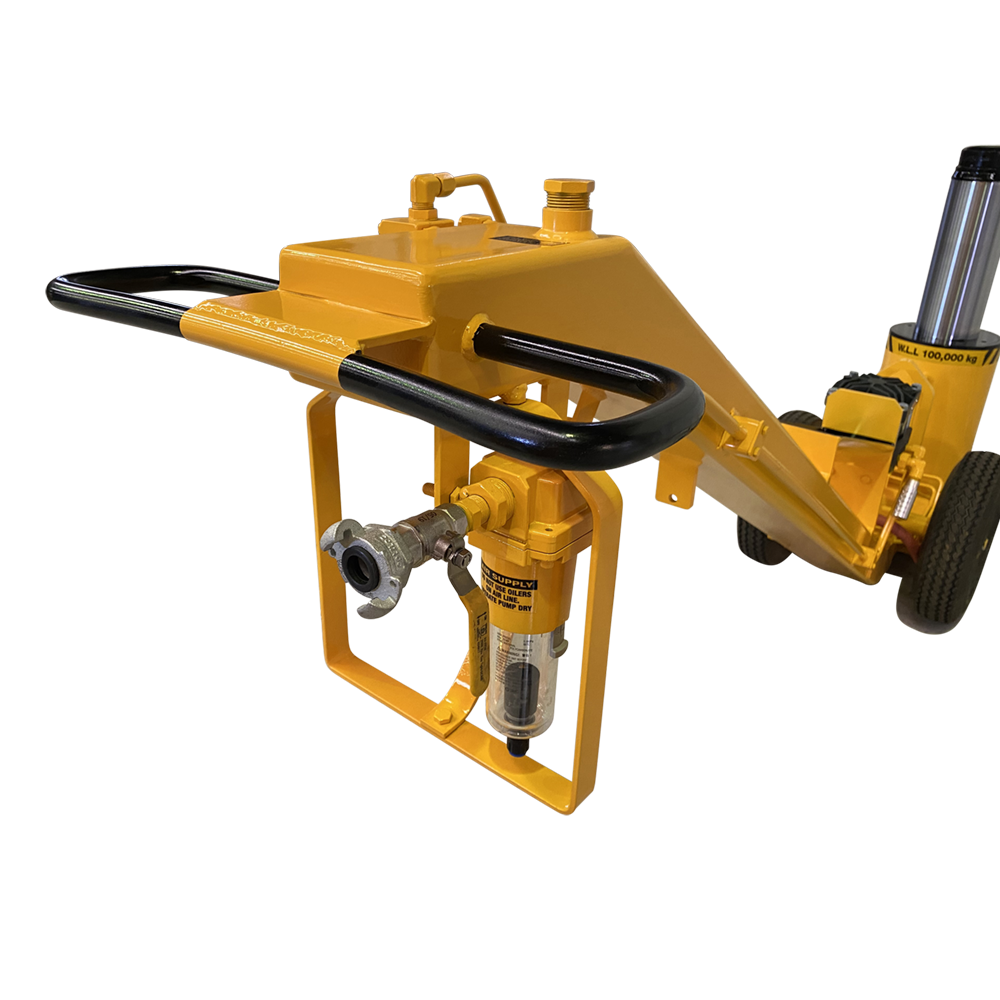

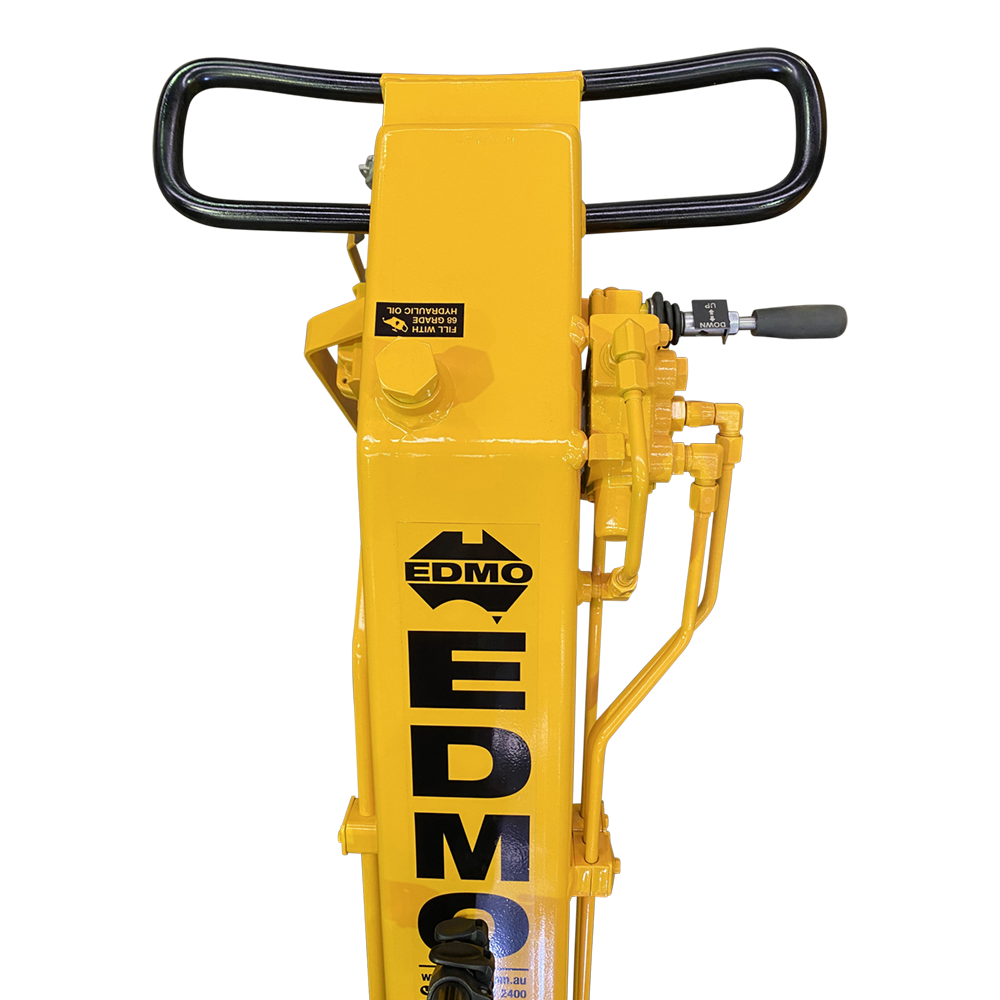

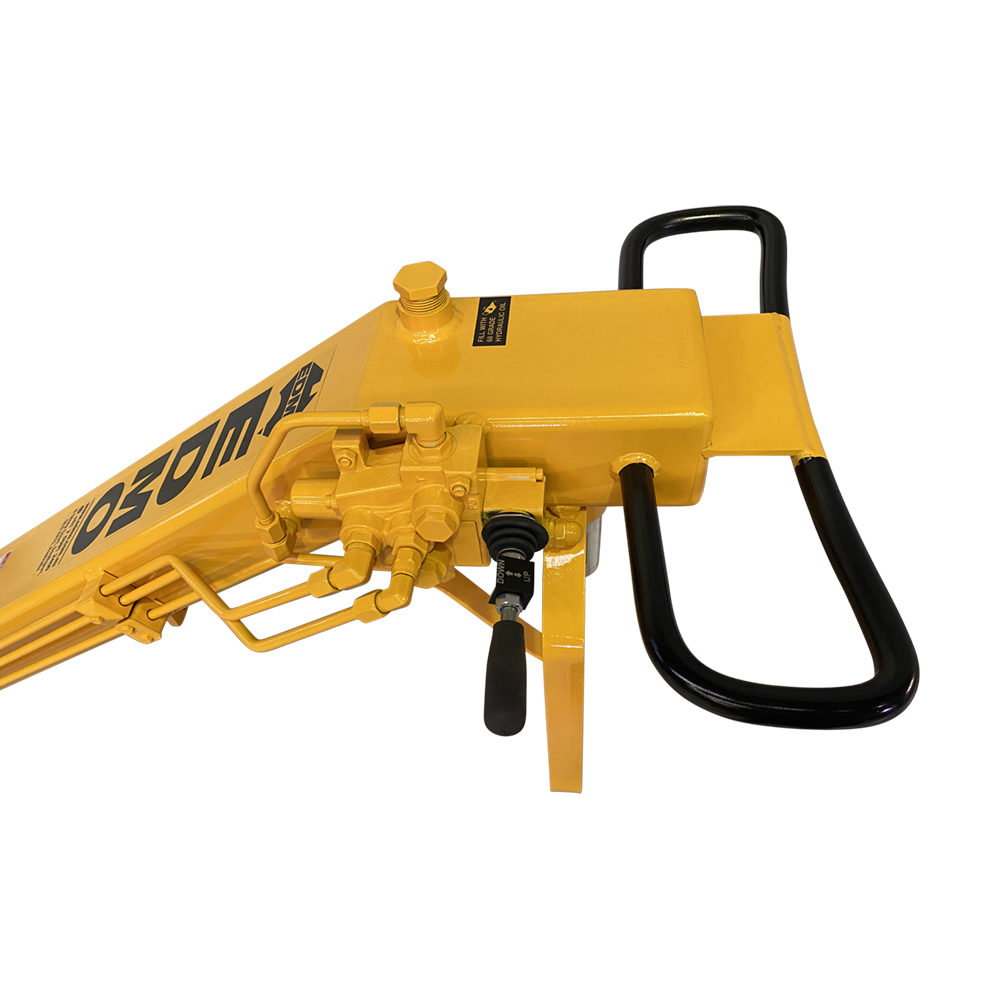

The EDMO DM10 is a single stage hydraulic jack, powered by an air pump. Operating controls are on the handle, well away from the jack body. The jack is power up and power down.
EDMO Jacks are fitted with lowering control and safety valves. Safety is a feature of the EDMO Jacks, having a pilot operated lowering control valve which requires the Jack to be pumped down thus providing protection against a free fall. Giving complete control over the lowering process.
When jacking, protection is provided against overloading by pressure relief valves. EDMO Jacks are fitted with lowering control and safety valves. Protection is also provided in the unlikely event of tube or fitting failure in the form of hydraulic fuses, which are activated by excessive flow such as a broken pipe or fitting.
Specifications
- Working Load Limit: 100,000kgs
- Closed height with load cap: 637mm
- Raised height with load cap: 1018mm
- Estimated Weight: 387kgs
Dimensions
- Length: 2394mm
- Width: 525mm
- Height: 1046mm
- Weight: 387kg
