EDMO MPDT100/50
Spec Sheet
View Document
Description

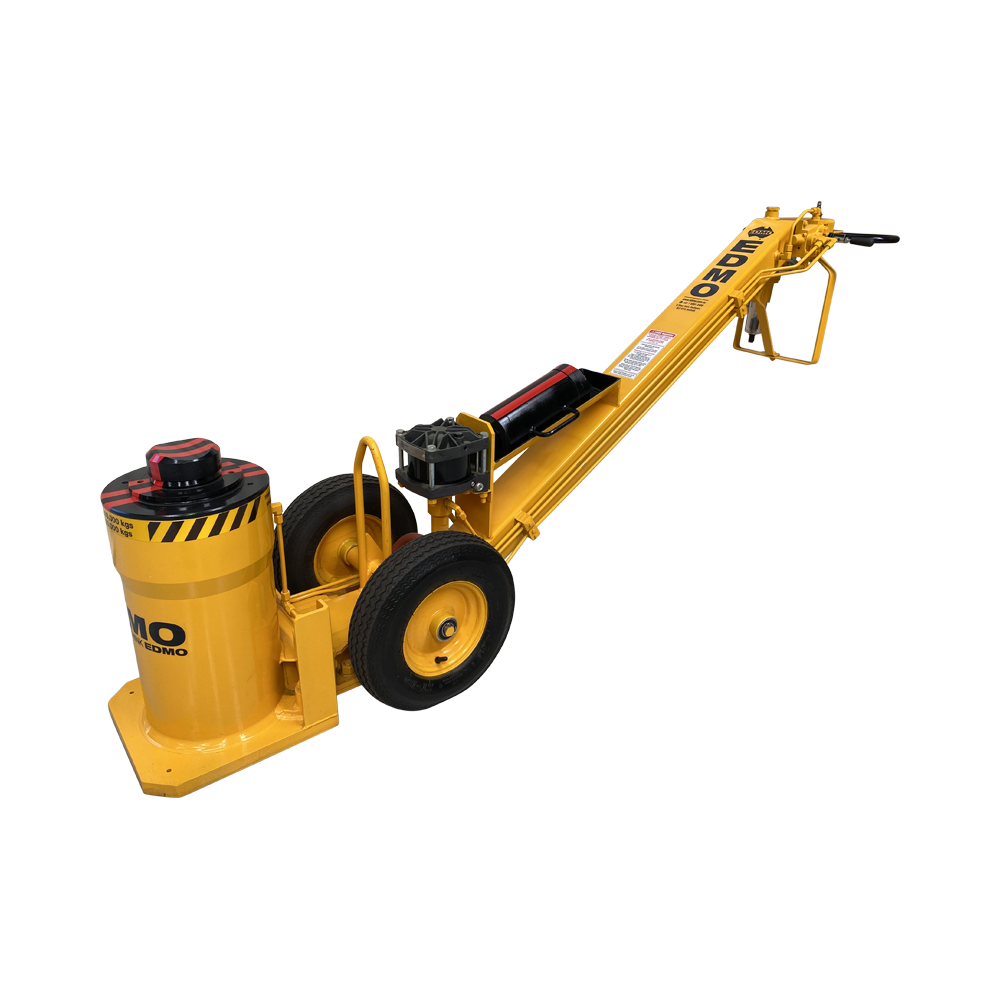

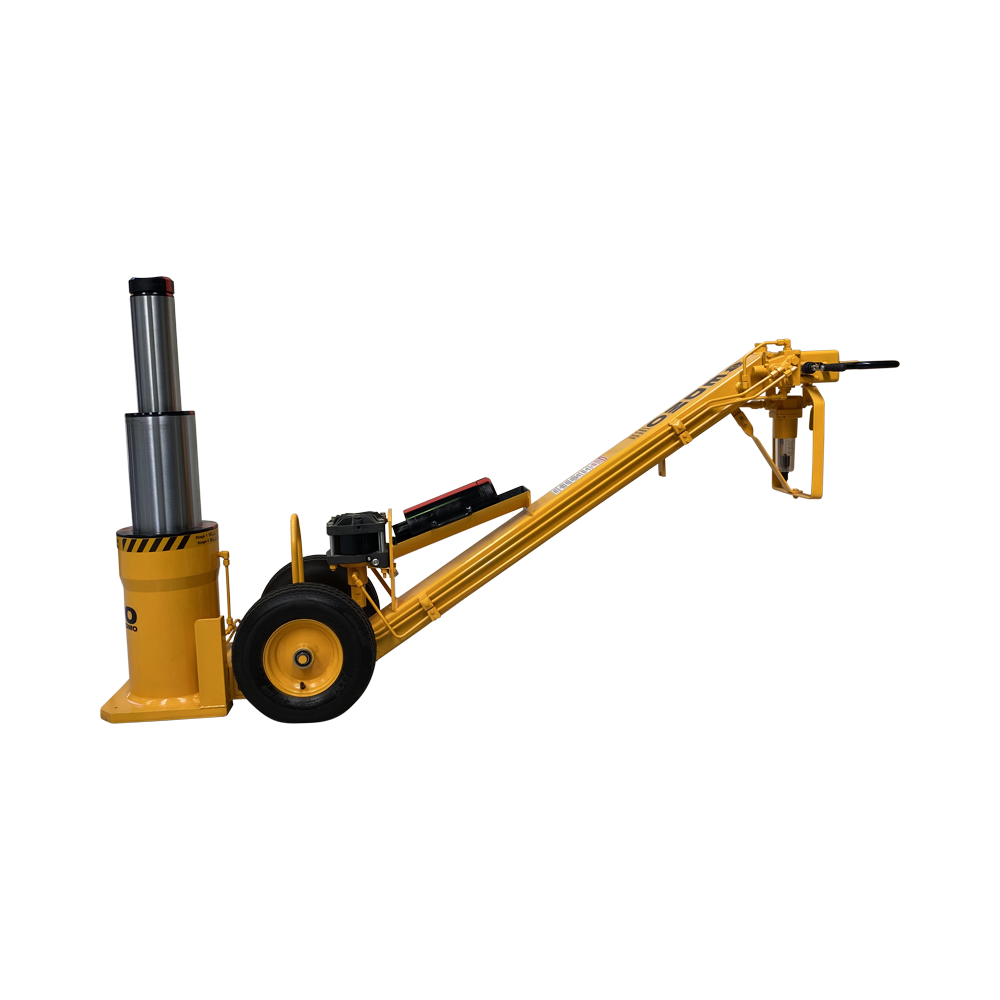

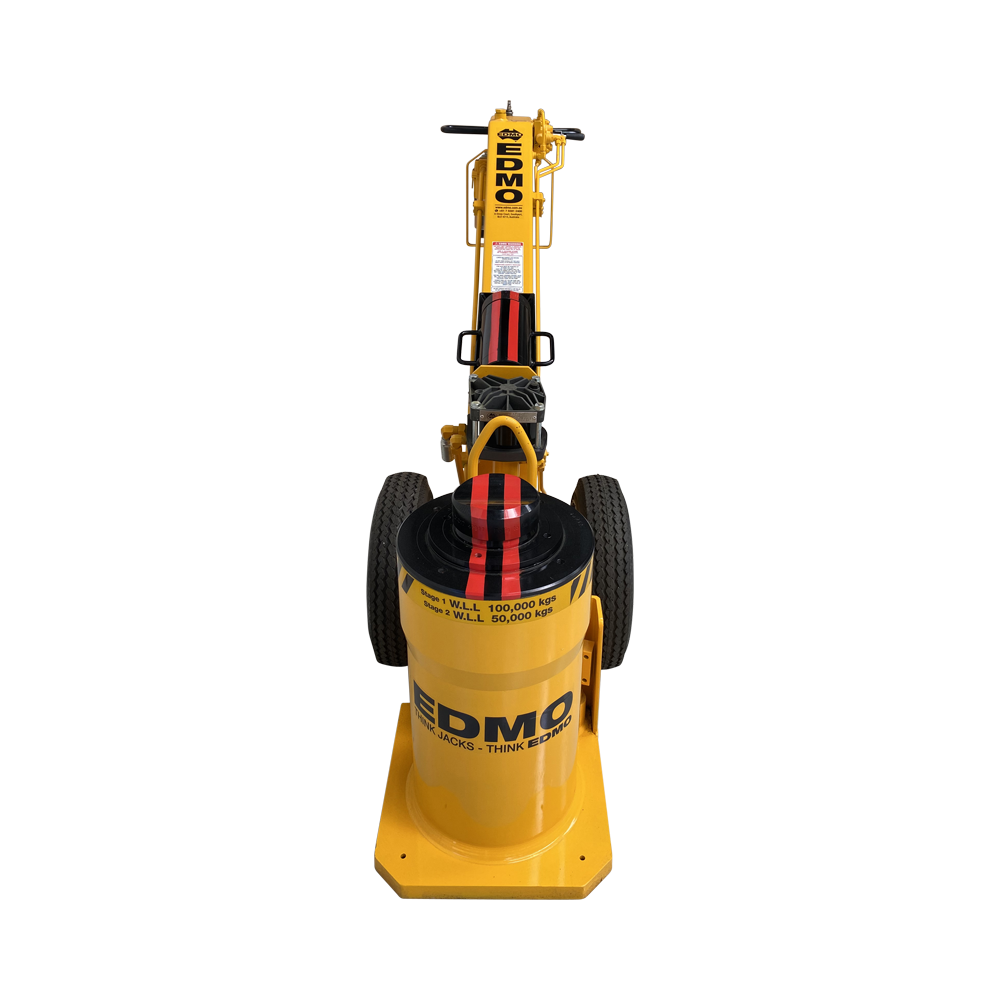

This is a 2 stage hydraulic jack powered by an air pump. It is operated from the end of handle, away from the jack operations. The jack is power up and power down. Safety is a feature of the UPDT100/50 having a pilot operated lowering control valve which requires the Jack to be pumped down thus providing protection against a free fall and gives complete control over the lowering process.
When jacking, protection is provided against overloading by pressure relief valves.
Protection is also provided in the unlikely event of tube or fitting failure in the form of hydraulic fuses, which are activated by excessive flow such as a broken pipe or fitting.
Specifications
- Working Load Limit 1st stage: 100,000kgs
- Working Load Limit 2nd stage: 50,000kgs
- Closed height with load cap: 620mm
- Raised height 1st stage: 955mm
- Raised height 2nd stage: 1300mm
- Estimated Weight: 500kgs
Dimensions
- Length: 2414mm
- Width: 525mm
- Height: 1038mm
- Weight: 500kg
Vehicle Compatibility
EDMO MPDT100/50 is compatible with the following vehicle models:
18H, 24H, 730E-8, 773D, 775G, 777G, 830E-5, 854, 992, D10, D11, D475A, HD785
